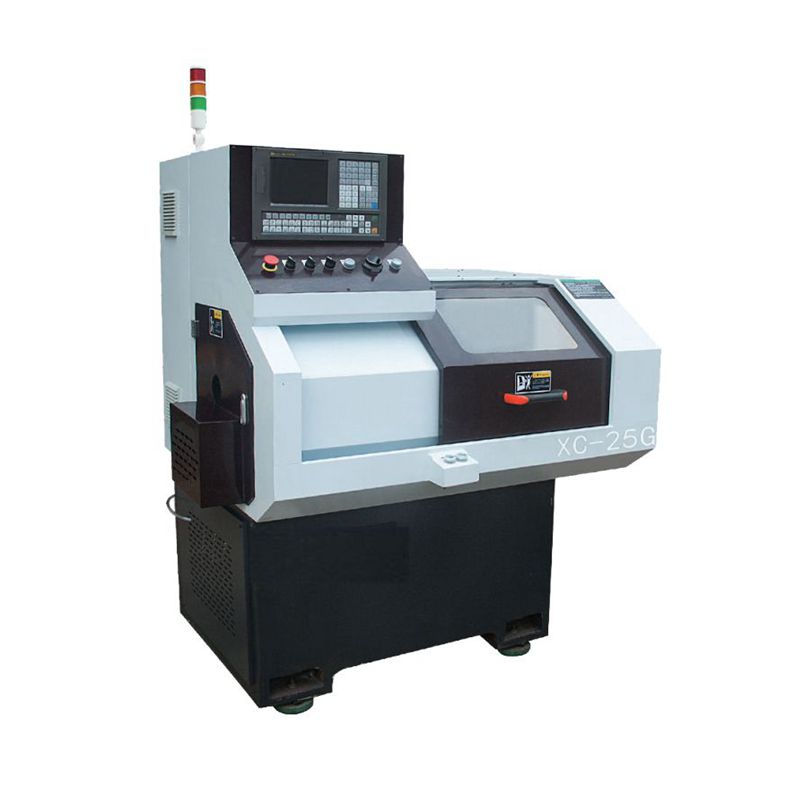

Incredible CNC Lathe Machine Inside Factory Perfect CNC Working Process
Five Advantages Of Products
- Guide rail adopts imported linear guide rail,low noise,high speed,high precision,long service life
- Straight row of high efficiency,precision ball screw vice more accurate
- Pneumatic,manual chuck,also optional hydraulic clamping device,convenient,fast,time-saving,labor-saving
- Totally enclosed protection,better protection of rail,wire rod and bearing
- Centralized lubrication,lubrication more in place
Product Details
parameter:
X axis trivel:400 (diameter) mm
Z axis trivel:180/220 mm
work table size:300*150 mm
T-slot (number of groove*width of grooves):3*20*45 mm
tool handle specification:20*20 mm
taper hole spindle:22 (c25)
driving mode:belt drive
spindle speed:50-3000 r.p.m
spindle motor:2.2 kw
X axis spindle mover:servo motor 12000 mm/min
positioning accuracy:+-0.008 mm
machine size:1370*1100*1630 mm
machine weight:960 kg
