Products

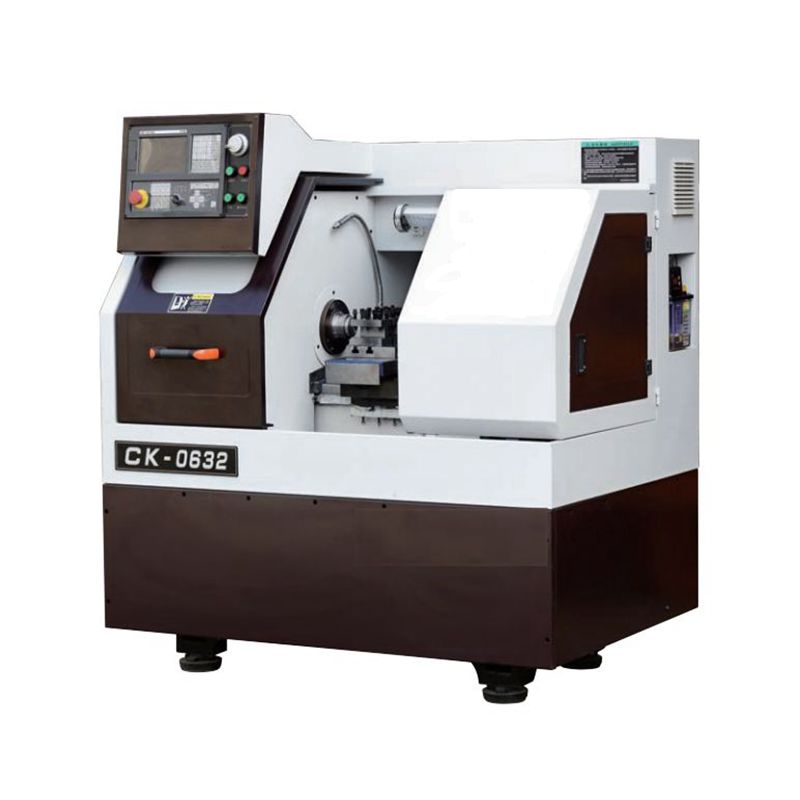

Low cost efficient easy operation full production available slant bed cnc lathe
Five Advantages Of Products
- Guide rail adopts imported linear guide rail,low noise,high speed,high precision,long service life
- Straight row of high efficiency,precision ball screw vice more accurate
- Pneumatic,manual chuck,also optional hydraulic clamping device,convenient,fast,time-saving,labor-saving
- Totally enclosed protection,better protection of rail,wire rod and bearing
- Centralized lubrication,lubrication more in place
Product Details
parameter:
X axis trivel:600 mm
Z axis trivel:240 (with tailstock) 300 mm
worktable size(length*width):420*180 mm
T-slot (number of groove *width of grooves):3*20*45 mm
Tool handle specification:20*20 mm
clamping mode:manual/hydraulic/pneumatic
driving mode:belt drive
spindle speed:50-2500 R.P.M
spindle motor:4 kw
machine size:1600*1100*1560 mm
machine weight:1100 kg
Taizhou Yihong import and export co .,ltd
Contact Person: Alice
Telephone: +86 13736528282
Landline: +86 13736528282
Company Address: Bingang Industrial Zone, Shamen Town, Yuhuan City, Zhejiang Province, China
Website: www.rotary-transfer-machine.com
